I. Product Description:

The Ceiling POE wireless access point provides high-speed wireless transmission rate, which conforms to the latest 802.11n standard and 802.11ac standard. The transmission rate is about 1200mbps (2.4G 300mbps + 5g 867mbps), meeting the transmission requirements of all data, voice and video streams.

Greater coverage and easy installation.

The ceiling type design is beautiful and convenient for users to install. The unique ceiling type design can be stably adsorbed on the ceiling after simple installation. The unique structure has more decorative effect on the surrounding environment and is beautiful and generous.It can meet more wireless client access, provide higher wireless bandwidth for each client at the same time of the number of wireless clients, make the data transmission in the LAN more efficient, at the same time, higher wireless bandwidth can also avoid data congestion, reduce network delay, and make voice video, online on demand, network games more smooth.At the same time, Poe power supply is supported, so that the AP can get rid of the limit of power access point, and power is supplied through the network cable, which simplifies the installation and makes the AP layout more free.

II. Product features:

l Power receiving equipment (PD) as IEEE 802.3af/802.3 standard

l Comply with IEEE 802.11b/g/n/a/ac standard

l Support data 2.4G transmission rate up to 300mbps, and be compatible with other IEEE 802.11b/g/n wireless devices

l Support data 5G transmission rate up to 867mbps, and be compatible with other IEEE 802.11ac/a wireless devices

l It has good receiving sensitivity and high transmitting power, greatly expanding the wireless coverage

l Provide hidden SSID function

l Support multiple SSID (Max to 8 SSIDs for 2.4G radio and max to 8 SSIDs for 5.8G radio)

l Firmware upgrade via web browser

l Provide two 100/ 1000M Ethernet interfaces and support automatic MDI / mdix

l Support automatic adjustment of wireless transmission rate

l Support encryption and security mechanisms such as WPA, WPA2, WPA hybrid, 802.X via RADIUS and etc., which can ensure data security in wireless network transmission

l Support SSID broadcast control to effectively prevent SSID broadcast leakage

l Support web based configuration

l Support management by Cloud AC

l Support SSID bonding VLAN

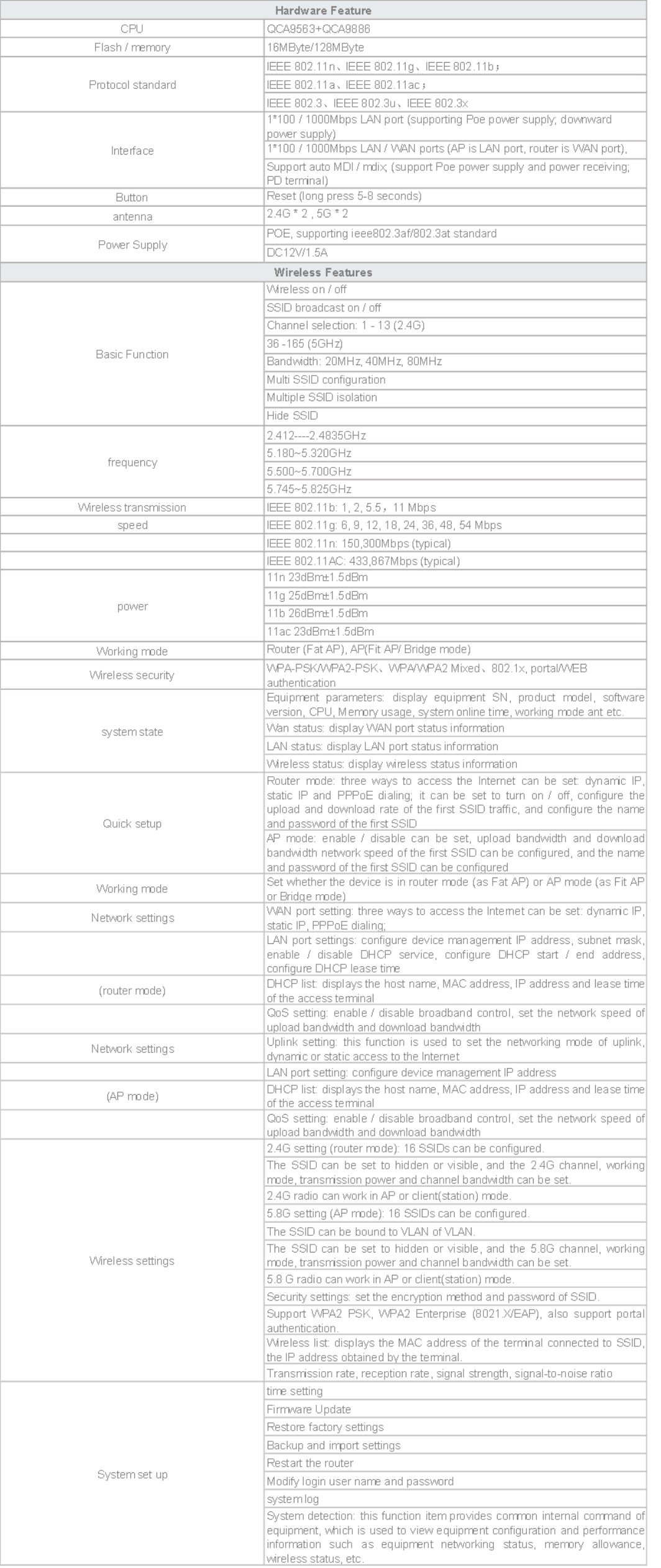

III. Product Specifications:
